Bradfield, 75 years on – part 4: Unfinished business – Sydney’s “missing metro”

Posted on 23 September, 2018 by Alex

In commemoration of John Bradfield on the 75th anniversary of his death on 23 September 1943, I’m writing a series of posts exploring some of the ideas outlined in his 1924 engineering doctorate thesis and their relevance for Sydney a century later. Please see part 1 for the background to this series, and follow these links to part 2 and part 3.

While Sydney’s Harbour Bridge and its underground CBD railway are enduring testaments to the way in which engineer John Bradfield shaped this city, they represent only part of a grander vision.

Bradfield thought big. He wanted to solve the chronic traffic problems of Sydney in the early 20th century and provide a foundation for its continued growth by giving it a modern rapid transit rail system, based (as described in the previous article) on the latest European and American technology. He wanted to extend this rail network to the edges of “greater Sydney” as it then existed, but also to lay the foundations for rapid transit within the city’s inner suburbs.

At the heart of this network was the bridge and the CBD railway, but Bradfield also proposed three additional lines that would have filled the gaping holes in rail coverage in the inner city. Unfortunately, these were never built as Bradfield planned – had they been completed Sydney would in effect have gained a metro, a full century before the one currently being constructed, and consequently would have been a very different city to the one we know today.

This is the story of these abandoned and largely forgotten proposals and of the city that might have been.

City and Suburban Railways 1915, authorised to Bondi (Junction) and Weston (now Victoria) Road Balmain. Source: R. Raxworthy, The Unreasonable Man

Continue reading →

Posted in Bradfield, Public Transport, Sydney metro area, Transport | Tagged , , , , , | 2 Comments

Bradfield, 75 years on – part 3: Rapid Transit comes full circle

Posted on 17 September, 2018 by Alex

As the 75th anniversary of John Bradfield’s death on 23 September 1943 approaches, I’m writing a series of posts exploring some of the ideas outlined in his 1924 engineering doctorate thesis and their relevance for Sydney a century later. Please see part 1 for the background to this series, and catch up with part 2 here.

The first name for the Sydney Metro when it was announced in 2012 was Sydney Rapid Transit, with much being made of the “new rapid transit system” and its ability to carry thousands of people per hour. The name has since changed but the fundamental premise, that a new breed of single-deck trains operating at high frequencies represents a step change for users of the Sydney rail network, remains the same.

This would have surprised John Bradfield because the concept of rapid transit was at the core of his plans to modernise and expand Sydney’s rail system a century ago. Why then is rapid transit being reinvented for the Sydney Metro, and what has changed in the past 100 years?

The use of “rapid transit” to refer to urban rail systems is older than you might think. In England, Picturesque and Descriptive. A Reminiscence of Foreign Travel published in 1882, Joel Cook, an American visiting the UK, admired the Metropolitan Railway, London and the world’s first underground railway which had opened in 1863:

The original idea seems to have been to connect the various stations of the railways leading out of town, and to do this, and at the same time furnish means of rapid transit from the heart of the city to the suburbs… In this way London has solved its rapid-transit problem, though it could be done only at enormous cost.

By the time Bradfield travelled to Europe and North America in 1914 to study the latest metro and subway systems the term rapid transit was in common use; the Brooklyn Rapid Transit Company was formed in 1896 and the Interborough Rapid Transit Company opened in 1904 as New York’s first subway line. Bradfield made detailed observations of these systems, carefully documenting the speed, frequency and dwell times of trains for his 1916 Report on the proposed electric railways for the City of Sydney. This report also outlined his rationale for a rapid transit system in Sydney and how it would work.

Brooklyn Rapid Transit System A/B Railcar plans, 1914. Source: http://www.nysubway.org

NSWGR Standard Suburban railcar design, 1924. Source Bradfield thesis, University of Sydney

Continue reading →

Posted in Bradfield, Public Transport, Transport | Tagged , , , | 1 Comment

Planning for AVs: part 1 – three perspectives on a driverless future

Posted on 4 September, 2018 by Alex

Predicting the impact of new technology is a very inexact science. Technological change proceeds by fits and starts and the outcomes are rarely what its authors expect – who for example, could have predicted the rise and swift demise of the fax machine, or the marriage of phones and cameras, or that an app built on couch surfing could upend the hotel industry?

Despite this we still need to at least try to ask the right questions if we want to at least attempt to influence the direction of change. The seemingly unstoppable rise of autonomous vehicles (AVs) provides a potent example. There is an increasing realisation that AVs are likely to become a reality, though there is still considerable debate on how, when, and how quickly this will occur. What is certain however is that the impact of AVs will be profound. The advent of their predecessor provides abundant evidence for the impact of new mobility technologies; every aspect of human life over the last century or so, especially for people living in cities, has been substantially affected by cars.

While the impact of AVs will be different, our experience with cars gives us some clues regarding the potential spread and scale of disruption. Three major reports released in the past 12 months have looked at these issues from different perspectives. The first, Rethinking Transportation 2020-2030 by James Arbib & Tony Seba from the think tank Rethinkx, is full of dramatic predictions regarding the potential for AVs to be universally adopted within the next decade, and the consequent social changes.

Speed of adoption of Transport as a Service (TaaS). Source: James Arbib & Tony Seba, Rethinking Transportation, 2020-2030.

Continue reading →

Posted in Autonomous Vehicles, Transport | Tagged , , , | Leave a comment

Bradfield, 75 years on – part 2: “the only woman present” – Kathleen Butler and the Bridge

Posted on 9 August, 2018 by Alex

As the 75th anniversary of John Bradfield’s death on 23 September 1943 approaches, I’m writing a series of posts exploring some of the ideas outlined in his 1924 engineering doctorate thesis and their relevance for Sydney a century later. Please see part 1 for the background to this series.

In his preface to his thesis for the degree of Doctor of Science in Engineering which documented his work on the Sydney Harbour Bridge, construction of the underground railway and electrification of the rail network John Bradfield acknowledges the contribution of only two people.

He gives one a brief mention – Professor Warren, who taught him “the sound principles of Engineering practice” – but he is much more generous in thanking the other. After describing the establishment of the Sydney Harbour Bridge and City Transit Branch and his own appointment as Chief Engineer in 1912, Bradfield lavishes praise on the Branch’s next appointee:

The first officer appointed to the branch was Miss K.M. Butler now my Confidential Secretary: she has at all times carried out her duties with foresight, tact and marked ability. In preparing the Specification for the Sydney Harbour Bridge she was my only assistant; the technique of the Specification is hers, and I think it would be impossible to find a better arranged or better printed specification. During my absence abroad in 1922 she carried out all correspondence with tenderers throughout the world, herself; she is present at all interviews with the tenderers in Sydney and myself excepted she alone knows of the many issues involved in tendering for the bridge. Her conscientious and efficient help has materially lightened the responsibility which the design and construction of these two great engineering works have entailed, and in this Thesis I wish to place on record my sincere thanks to the lady for her invaluable assistance. (in this and all Bradfield’s quotes used in these posts his original spelling, punctuation, grammar and word capitalisation are retained)

Despite Bradfield’s generous recognition, “Miss K.M. Butler” seems to have largely slipped from public view. She doesn’t deserve this fate, not only because of her substantial contribution to the building of the bridge, but also because her story provides a fascinating perspective on the lives of working women in the early 20th Century, with some lessons for us today.

Kathleen Butler starts no. 1 compressor to commence construction of the Bridge in September 1923 (source: NSW State Archives)

Kathleen Muriel Butler was born in February 1891 in Lithgow NSW, one of seven children to an English father and Irish mother. She grew up in the Blue Mountains and attended school in Mt Victoria, where her father was stationmaster, and later Mount St. Mary’s Convent in Katoomba.* Continue reading →

Posted in Bradfield, History, Infrastructure, Public Transport, Sydney metro area | Tagged , , , , , | 2 Comments

Bradfield, 75 years on – part 1: the Science of Engineering

Posted on 31 July, 2018 by Alex

Recently I spent 10 minutes or so at Sydney’s busy suburban Strathfield Station while changing trains in the evening peak hour. As I waited I watched the synchronised dance across the station’s eight platforms as double-deck trains arrived, disgorged commuters, picked up more passengers and departed, all relatively quietly and with little fuss.

On my platform the movement was almost hypnotic, as four or five identical Waratah trains arrived in succession, stayed exactly the same length of time and then departed little more than two minutes apart. Whatever the state of the ageing Strathfield Station or the wider flaws of the Sydney transport system, the calm passage of these trains, all less than 10 years old and each carrying up to a thousand passengers, gave the impression of a reasonably modern, functional urban rail network.

My thoughts turned to John Job Crew Bradfield, the engineer whose name is inextricably linked with the development of Sydney’s transport infrastructure in the early 20th century. I don’t believe Bradfield had any special connection with Strathfield station which was opened in the 1870s, but he had a large hand in creating the electrified railway network which passes through it. He also oversaw the planning and construction of the two other key components of this network, Sydney Harbour Bridge and the underground railway in Sydney’s CBD.

Later when I was looking up some facts on Bradfield I realised that the 75th anniversary of his death on 23 September 1943 is approaching. In a modest commemoration I’ve decided to revisit not so much about the man himself, or indeed his achievements, but rather what he wrote about them. I’ll be concentrating in particular in this occasional series on Bradfield’s thesis for the degree of Doctor of Science in Engineering, which he was awarded by the University of Sydney in 1924.

Detail from the cover of Bradfield’s 1924 thesis (source: University of Sydney eScholarship Repository)

Every time I look at it (the thesis is available from the University repository) I’m struck by the extraordinary breadth of its scope – I suspect that no other thesis before or since has combined as a single subject the author’s own work in managing the planning and construction of a major bridge and an underground railway, as well as the electrification of a suburban rail network. Continue reading →

Posted in Growth, History, Infrastructure, Sydney metro area, Transport | Tagged , , , , , , | 4 Comments

Martin Place – the “new” Sydney Central?

Posted on 18 July, 2018 by Alex

There have been a few developments since my earlier posts on plans for the proposed Sydney Metro West, with a strong business sector push for the metro to provide a high-speed link between Sydney CBD and Parramatta and apparent confirmation of the location of a key CBD station.

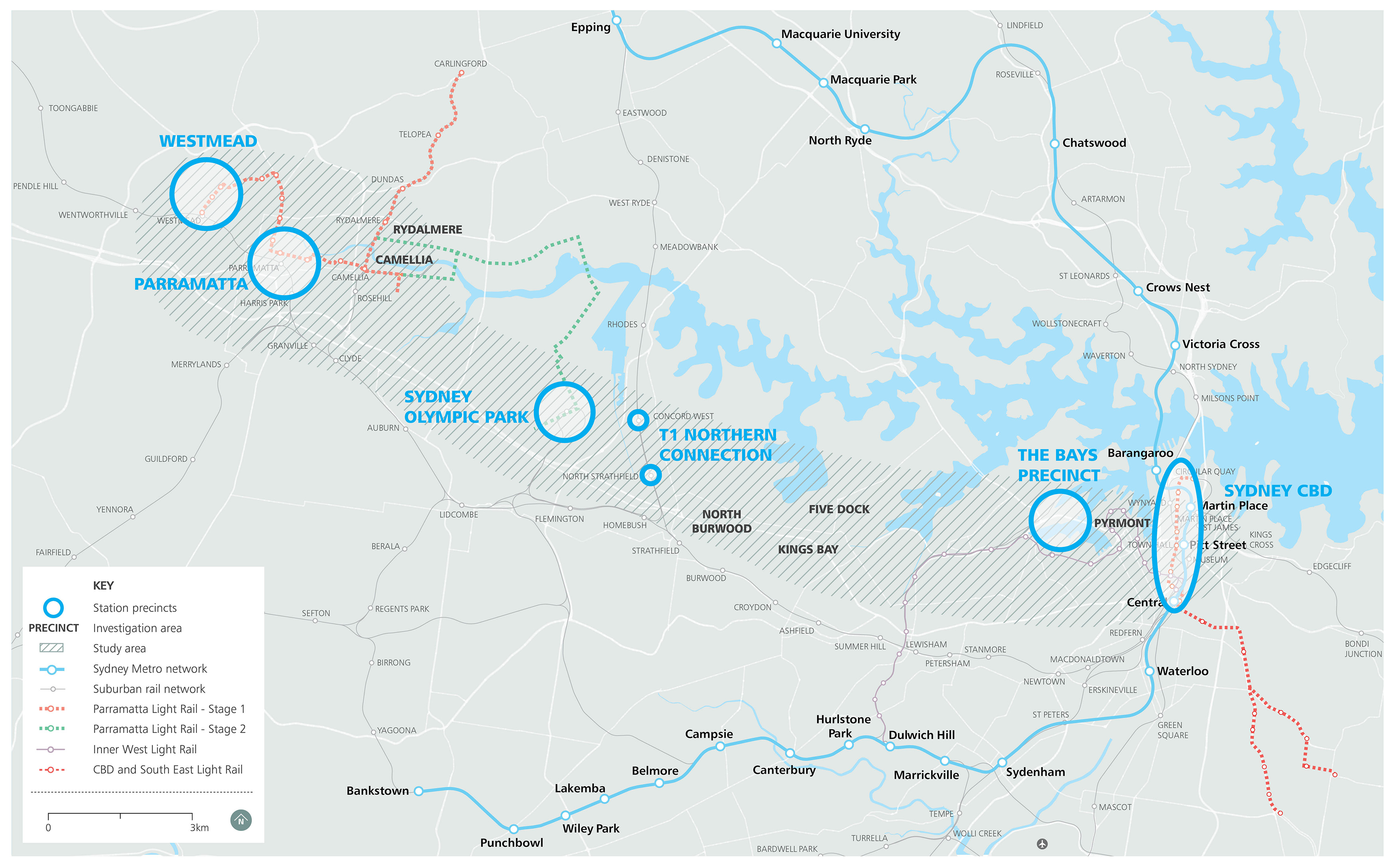

Sydney Metro West corridor (source: Sydney Metro)

I’ll deal with the high-speed metro proposal in a future article but for now I’ll concentrate on the Sydney city end of the route. The decision on CBD station location will have major implications for the CBD’s future development, centralising rail access in the city’s centre. Continue reading →

Posted in Infrastructure, Public Transport, Sydney metro area, Transport | Tagged , , , , , | 4 Comments

A tale of two metros: London Crossrail and Sydney Metro compared

Posted on 30 June, 2018 by Alex

As readers of this blog will know I have written extensively (and often critically) about the Sydney Metro. In July 2016 I published a series of articles comparing four major Australasian CBD rail projects – Auckland, Brisbane, Melbourne and Sydney. While I plan to update this soon to reflect progress on all four projects since then, I thought I’d make a different comparison: London’s Crossrail (which will be renamed as the Elizabeth Line later this year, though I’ll use both names interchangeably here) and the Sydney Metro.

Why compare these two projects? They share a number of similarities, and of all the antipodean projects listed above, only the Sydney Metro approaches the scale of the Elizabeth Line – and in some important aspects exceeds it. And while there are a number of major metro expansion projects in other cities overseas, most notably China and India, Crossrail is one of the few that is directly comparable with Sydney’s new line (and also one of a limited number for which comprehensive information is available in English).

There are also some interesting and fundamental differences. The following discussion briefly outlines each project and their key features are also summarised in the following table.

Elizabeth Line (Crossrail)

The Elizabeth Line is 118 kilometres in length, with two branches at each end and over 21 kilometres of mostly new tunnelling. It runs from Heathrow Airport and Reading in the west through central London to Shenfield and Abbey Wood in the east. There are 41 stations, all accessible, with 10 new ones and the remainder upgraded. Of these, 24 will provide interchanges with existing rail services.

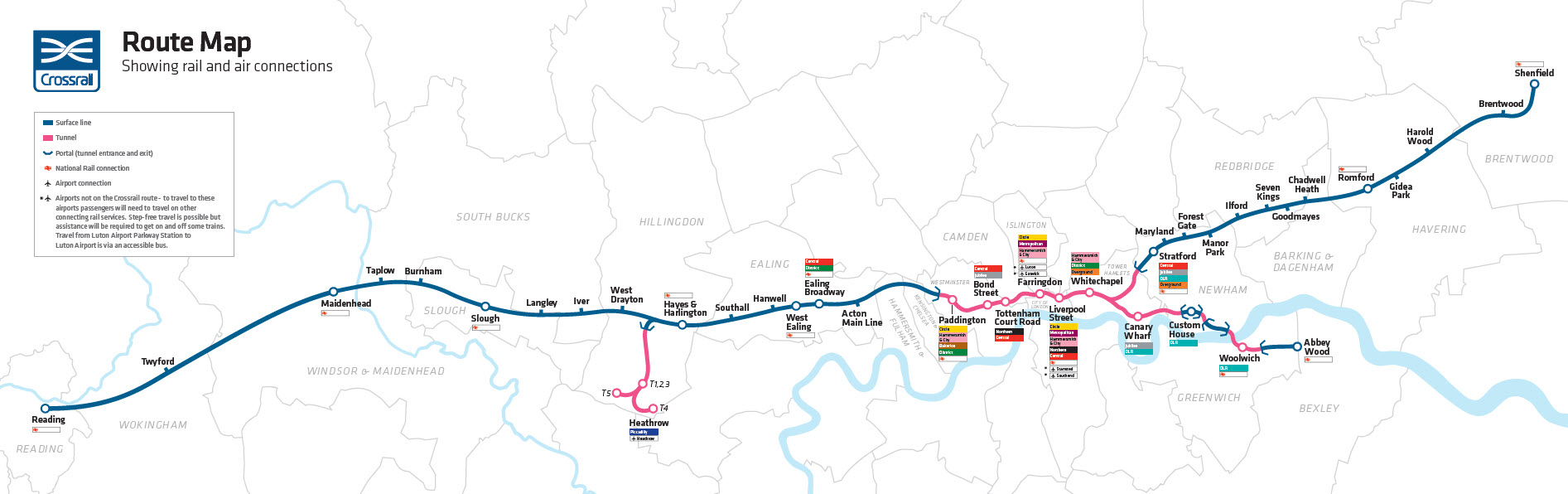

Elizabeth Line route map (source: Crossrail)

Continue reading →

Posted in Public Transport, Sydney metro area, Western Sydney | Tagged , , , , , | 4 Comments

Sydney Metro’s commercialised future

Posted on 17 May, 2018 by Alex

What if the NSW government set up a new state-owned business corporation and handed it sweeping powers that duplicated those of several established authorities, including the power to prepare strategic plans, buy, develop and sell land, run other businesses (including bus services) and, incidentally, manage a railway system?

Well, this isn’t a hypothetical question, as the government has just pushed the Transport Administration Amendment (Sydney Metro) Bill 2018 through parliament. The legislation, which passed yesterday with little fanfare, amends the Transport Administration Act 1988 to constitute the Sydney Metro as a corporation. It also creates the Sydney Metro Board to run the new entity, which can undertake all the activities outlined above.

Why has the government done this? Setting up a government-owned corporation to oversee the development and operation of a privately-operated metro is not so surprising for a Coalition Government, but why give this new body a range of powers that goes well beyond ensuring the metro trains run on time?

Not surprisingly the opposition thinks it has the answer – the metro is being “fattened” for privatisation, a claim the government strenuously denies. However, the government may have another agenda for the Metro, one which may prove to be even more controversial.

 Sydney Metro: open for business

The legislation starts with a clear commercial focus. The “orderly and efficient development of land” near metro stations, depots and stabling yards is given equal top billing as a key objective alongside the delivery of “safe and reliable metro passenger services”.

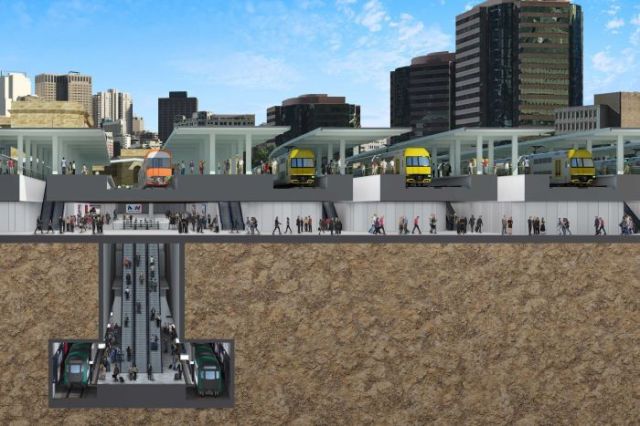

Central Walkway at Central Station – will the new Sydney Metro Corporation be managing these sorts of projects in future? (source: NSW government – artist impression)

Continue reading →

Posted in Infrastructure, Planning, Public Transport, Sydney metro area, Western Sydney | Tagged , , , , , , | 2 Comments

Labor’s different track on the Sydney Metro – part 2: possibilities and practicalities

Posted on 15 May, 2018 by Alex

In my last article I looked at the broader political and policy perspectives of NSW Opposition Leader Luke Foley’s recent announcement that if Labor wins the 2019 State election it will “accelerate the construction” of the Sydney Metro West line, scrapping current Government plans to convert the Bankstown to Sydenham rail line to form part of the Sydney Metro City and Southwest (Metro CSW).

Implementing this would not just be a simple matter of cancelling one metro project to build another. The Opposition has released little detail on its proposals, but in part 1 I identified three possible alternatives:

  • Two-line option: build the two Metro lines separately as currently planned, but without the Bankstown line conversion. The key decision is around where the Metro CSW line is terminated.
  • Combined single-line option: alter the plans for the both metros to combine them into a single line. This involves deciding where the two lines would join and what changes would need to be made to their alignments.
  • Postponing or cancelling the Metro City and Southwest: the most drastic alternative which would postpone or even abandon the Metro CSW and divert all funding to Metro West. This is extremely unlikely to occur as preliminary work for the line has already started, but it is a theoretical possibility.

It’s worth having a look at these options and the practical issues involved in more detail.

Two-line option

This assumes that Labor would adopt the current plans for Metro West largely unchanged. The Metro CSW would also be built from Chatswood at least to Central with a CBD interchange between the two lines as currently planned, but without the incorporation of the Sydenham to Bankstown line.

Labor Metro Options: two separate lines, indicative routes. Metro NW and CSW (Cudgegong Road to Waterloo) – magenta, Metro West (Pitt Street/Martin Place to Westmead) – yellow, interchange at Pitt St and/or Martin Place. (base map source: Transport for NSW)

Continue reading →

Posted in Public Transport, Sydney metro area, Western Sydney | Tagged , , , , , , , , , | 3 Comments

Labor’s different track on the Sydney Metro – part 1: politics and priorities

Posted on 7 May, 2018 by Alex

Recently the NSW Opposition Leader Luke Foley announced that if Labor wins the 2019 State election it will “accelerate the construction” of the Sydney Metro West line and scrap current government plans to convert the Bankstown to Sydenham rail line to form part of the Sydney Metro City and South West (Metro CSW).

In essence this was the policy advocated by retired transport planner Dick Day in an opinion piece  which I discussed earlier this year. The Opposition Leader’s announcement endorses Day’s critique that the Bankstown line conversion is “a poorly thought out initiative” and offers a real point of policy difference with the Government, but its implementation raises some interesting questions.

Sydney’s new metro train – but not bound for Bankstown under Labor (source: Transport for NSW – detail)

Continue reading →

Posted in Public Transport, Western Sydney | Tagged , , , , , , , , , | 2 Comments
